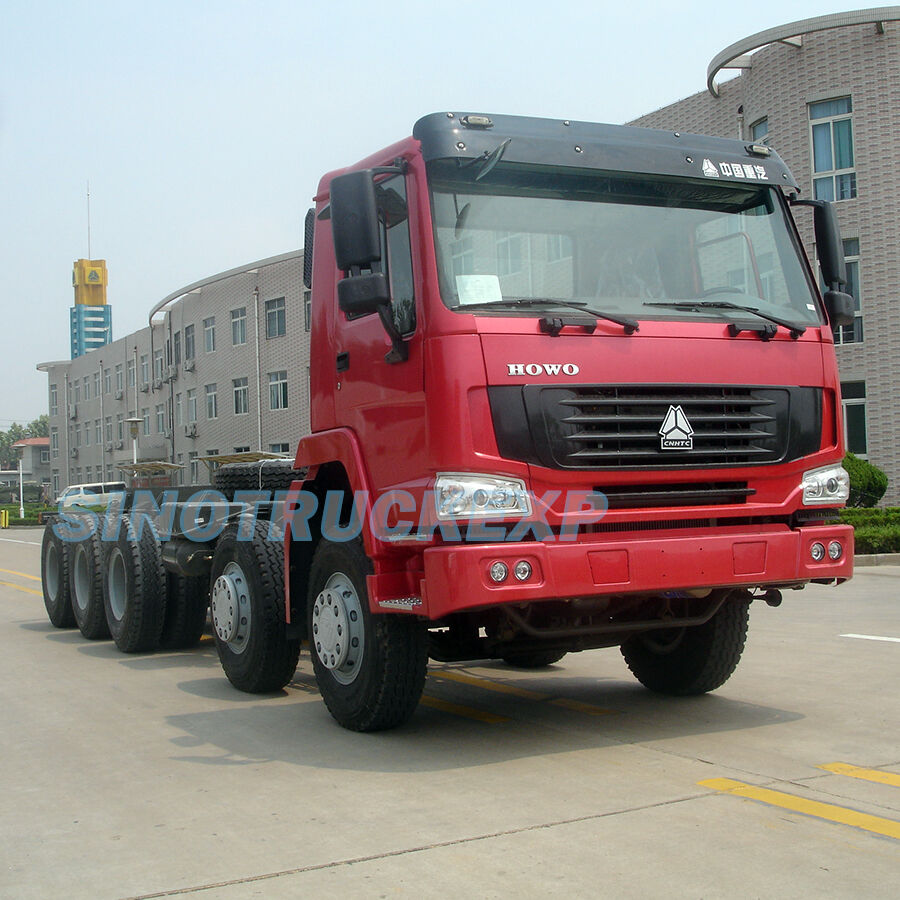

HOWO 10X6 16 Wheeler Truck 35CBM Euro II/Euro IV
HOWO dump truck, known also as a dumper truck or tipper truck is used for transporting loose material (such as sand, gravel, or demolition waste) for construction.

- Product Description -

HOWO 10X6 16 Wheeler Truck 35CBM Euro II/Euro IV



HOWO dump truck, known also as a dumper truck or tipper truck is used for transporting loose material (such as sand, gravel, or demolition waste) for construction. The dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery.



I. Feature:

1. Stronger power and Chassis bearing capacity.

2. Stronger adaptability in terrible working conditions. More reliable diaphragm clutch.

3. Sinotruk dump truck adopt many key technologies both from home and abroad, and it can achieve the best design and be in good conditions.
4. Low oil consumption. Sinotruk adopt the engine that combine the MAN and steyr technolgoy, it has the perfect oil performance.



II. Services

Technical support

We have professional engineers who are proficient in the knowledge of trucks and construction machines. They have rich experience and can solve all the problems that customers face. They can both teach theoretical knowledge in China and guide the operation at the construction sites of foreign countries.

Foreign maintenance sites& Workshops

We set up maintenance sites and workshops in some countries where we have a lot of customers. There are all kinds of maintenance tools and spare parts. The staff can provide quick and satisfactory services for customers.

Ocean shipping

We cooperate with world famous shipping companies and freight forwarders which have rich experience in handling shipping and can safely send the products to the destination ports on time.



III. Specification


Model10x6 cargo/dump truck chassisZZ5507N31B7D1ZZ3537N30D7A1/ZZ3537N35D7A1ZZ1537N45D7A1/ZZ1537N52D7A1ZZ3317N4667D1
CabinFour point s suspension Howo Cabin with spring and air shock absorber, A/C, VDO panel

Adjustable steering, sun cover
EngineType: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:WD615.47/D10.38STEYR technology (CNHTC)

MAX Horse power:266HP/196KW290HP/213KW336HP/247KW371HP/273KW420HP/309KW340HP/D10.34-40380HP/D10.38-40420HP/D12.42-40

Displacement(L):9.726liter (Euro 2 standard)

Max torque:1500NM@1200-1600rpm

Bore/stoke:126mm/130mm

Fuel consumption:197g /kwh
Gear boxCNHTCMax torque:1500NM

Model:HW15710/HW19710+HW50

Speed:10speed,2 reverse
Ratio123456789reverse

14.210.627.875.884.383.272.431.81.3413.91
Axle(front/rear)
Front axleHF9ton STEYR technology front steering axle
TandemHC/AC 16ton STEYR technology double reduction hub redactor driving axle Ratio: 4.42
ClutchD430 diaphragm type clutch
BrakeService brake: Dual lines air brake

Parking brake: Spring-Power drum brake

Engine brake: Engine exhaust brake(EVB)
SteeringZF8098, driver sit at the left hand side

Framestrengthen steel frame, designed according to tough road condition.
Tyre10+1 spare tyre with rim

12.00-20; 12.00R20; 12.00R24, 315/80R22.5, 12R22.5, 11R22.5, 11R20
Suspension system: strengthen heavy duty Leaf spring type

Front/Rear10/12
Cargo body:
Inside size of Body(mm): 8000×2326×1500mm, floor 8mm, side 6mm                      8700x2300x1500mm, floor 8mm, side 6mm                      11000x2300x1500mm, floor 8mm, side 6mm                     12000x2300x1500mm, floor 8mm, side 6mm
Can be refitted into refrigerator truck, van truck, logging truck, vacuum truck, water truck, oil tank truck, and so on
