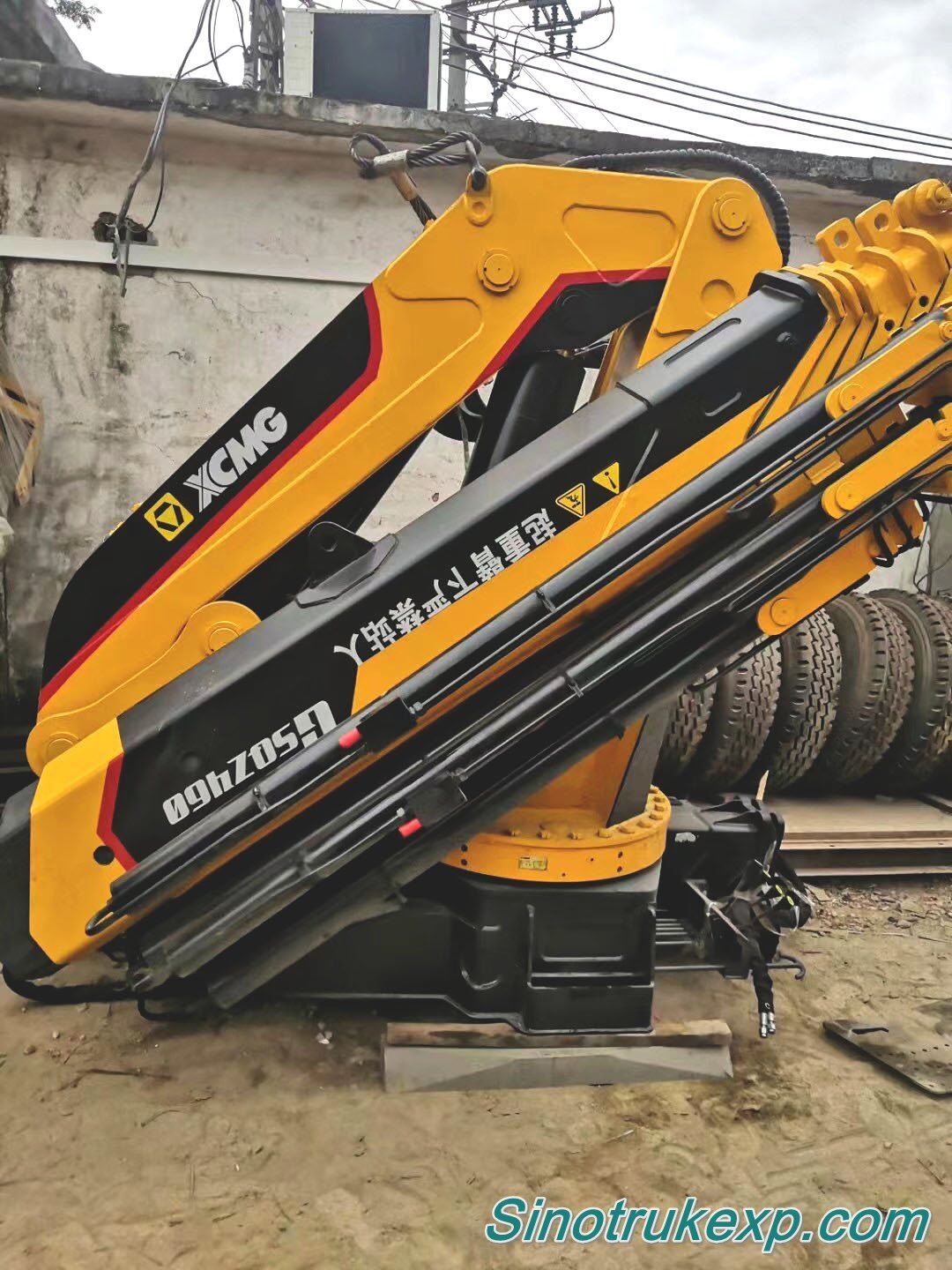

G Series XCMG Knuckle boom Crane GSQZ460
G Series XCMG Knuckle boom Crane GSQZ460

- Product Description -



Crane

XCMG   Knuckle boom: GSQZ460.6

Max. lifting momentkN.m

440

Max. lifting capacity(kg)

23000kgs

Max. hydraulic outreach(m)

16.80

slewing angle (°)

360   continuous

Stabilizer spread(mm)

7750

Max. operating pressure(Mpa)

32

Recommended Pump capacity (L/min)

80

Oil tank capacity(L)

270

dead weight

6100kgs

Color

red,   yellow, green, blue, white

1.   can choose Double rotary(double pumps)

2.   can choose rear supporting outrigger. Single outrigger or double cylinders   outrigger.
