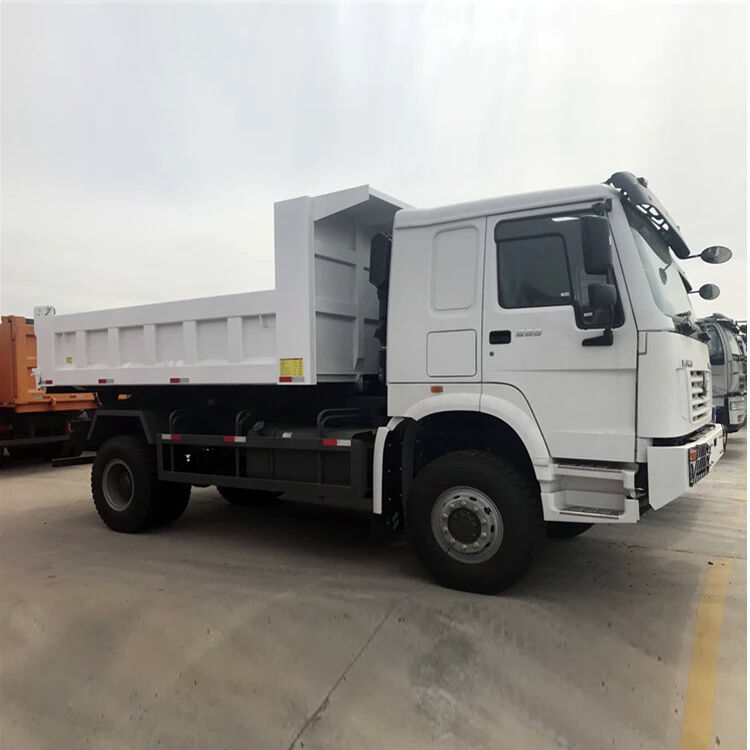

| Model | ZZ3167M4327A GCW25000kgs Driving Type 4×4 |
| Engine | Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with watercooling, turbo-charging & inter cooling, mechanical high pressure oil pump systemMaximum output: 371PS (273kW) at 2200 rpmMaximum torque: 1350Nm at 1300-1600rpmBore: 126mmStroke: 130mmDisplacement: 9.726LCompression ratio: 17.5:1Specific fuel consumption: ≤197g/kWhEngine oil filling quantity: 19LAir compressors: WABCO Twin cylinders air compressors |
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverseRatio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R) |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | New HF9 series, with drum brake systemSteering with double T-cross section beam |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.Ratio: 5.73 |
| Chassis | Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframeFront suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizerRear suspension: semi-elliptic leaf springs and bogie springsSpare wheel carrier: with one spare wheel |
| Steering | ZF8098, hydraulic steering with power assistanceRatio: 22.2-26.2:1 |
| Braking System | Front and rear drum brake, four-circuit protection valveService brake: dual circuit compressed air brakeParking Brake: spring energy, compressed air operating on rear wheelsAuxiliary brake: engine exhaust brake |
| Wheel & Types | Rims: 8.5-20,10 hole-steelTypes: 12.00R20, 12R22.5, 315/80R22.5 |
| Driver’s cab | Standard cab, all steel forward control, 55° hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, adjustable steering wheel. |
| Electrical System | Operating voltage:24V, negative groundedStarter: 24V, 7.5KWAlternator: 3-phrase, 28V, 1540WBatteries: 2×12V, 165AhCigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
| Dimensions in mm | Wheel base (mm)Front wheel track (mm)Rear wheel track (mm)Front overhang (mm)Rear overhang (mm)Approach angle(°)Departure angle(°)Overall Dimension (mm) | 43002022/204120221500202719226300×2500×3450 |
| Weight in kg | Permissible loading capacity (kg)Dead weight (kg)Gross vehicle weight (kg)Gross combination weight (kg)Front axle loading capacity (kg)Rear axle loading capacity (kg) | 153509720250002500090002×16000 |
| Performance | Maximum driving speed(km/h)Maximum gradeability (%)Minimum ground clearance(mm)Minimum turning radius (m)Fuel consumption(L/100km) | 75(reference data)403141640(reference data) |
