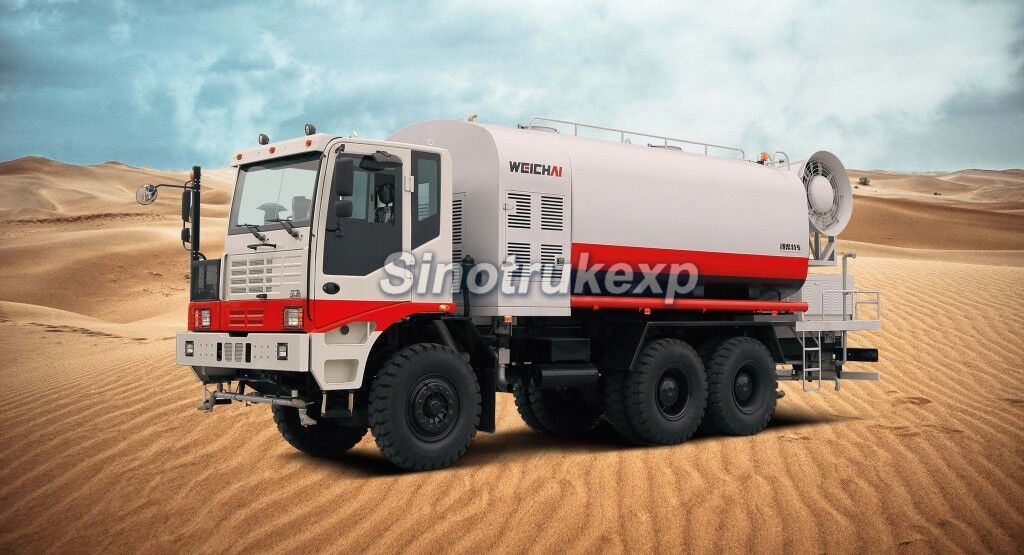

WEICHAI Mine Multi-Function Dust Suppression Vehicle
WEICHAI Mine Multi-Function Dust Suppression Vehicle

- Product Description -

WEICHAI special vehicles are independently designed and produced, and are suitable for spray dust removal, dust suppression, road watering and landscaping in open-pit coal mines, steel mills, cement plants, docks, mines and other dusty places.

Performance characteristics

1.     The design and production of the whole vehicle meet the national standards, which are multi-functional and efficient.

2.     The chassis adopts the golden power chain of Weichai system, with excellent and reliable performance.

3.     The generator set adopts Weichai brand, with reliable quality and stable performance.

4.     The water tank has high strength, large capacity and beautiful appearance.

5.     sprayers, with manual, remote control and automatic three control modes, the horizontal range can reach up to 100 meters.

6.     Complete functions and diversified configuration options.

7.     The operation is easy to operate, humanized and highly visualized.

8.     Complete protection and warning devices, safe and reliable.

Product Name

Mine Multi-Function Dust   Suupression Vehicle

Product Model

WT5740TDY

WT5900TDY


Outline Dimensions Dimensions

(mm)(Length×Width×Height)

11500*3400*4150

11860(rear extension 830)*3400*4166


Engine Model

WP12.380

WP12G430E310


Engine Rated Power (Kw/r/min)

280

316


Tank Volume (m³)

32

40


Wheel Base(mm)

3800+1550

5000+1550


Water Pump Model

80QZF-60/90S

80QZB-60/90S


Flow (L/min)

1000

1000


Head (m)

90

90


Speed(r/min)

1180

1480


Power(Kw)

22.5

24


Operating Speed (Km/h)

5∽20

5∽20


Front/Rear Sprinkling Width (m)

≥14

≥14


Flushing Width (m)

≥24

≥24


Horizontal Range of Sprayer (m)

100

100(still wind)


Pitch Angle(°)

-10°~40°

-10°~40°


Rotation Angle(°)

+/-90

+/-90
